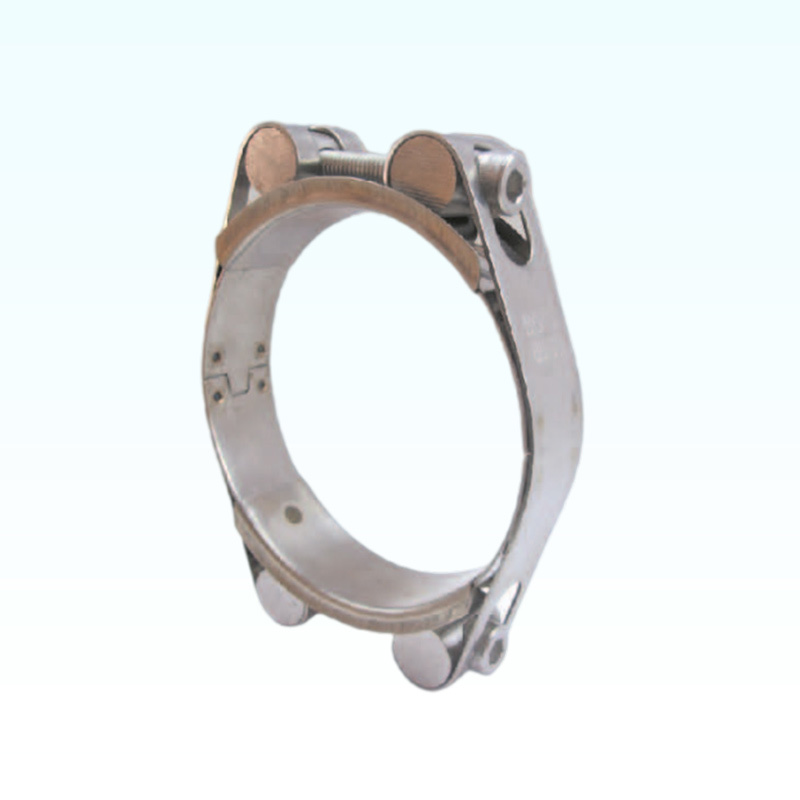

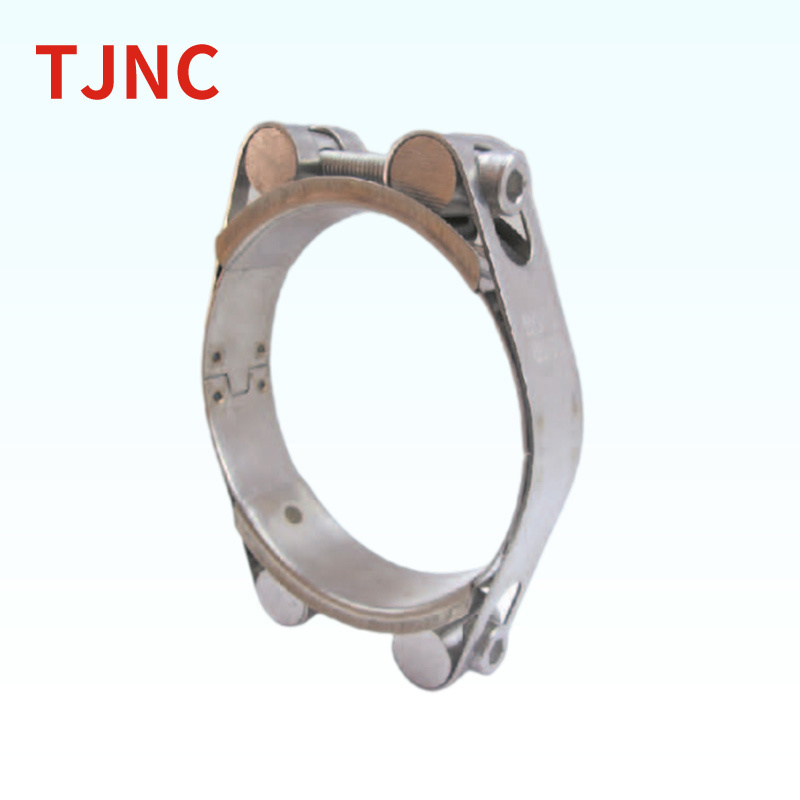

Double Bolt Hose Clamp
W4—They are all Stainless Steel.
Key words：
Classification：

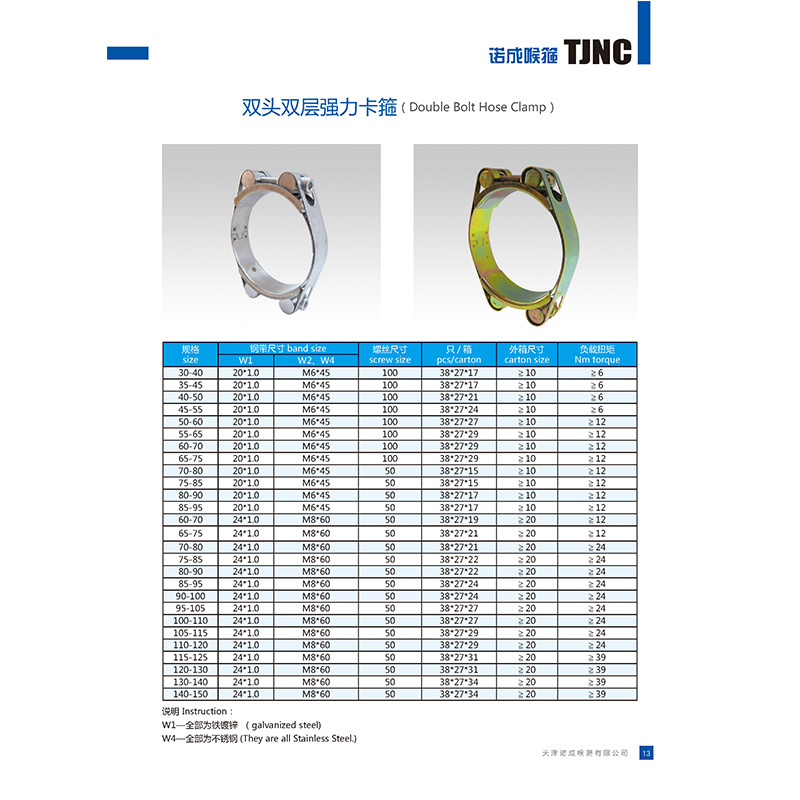

Description
|
SiZe |
band size |
screw size |
pcs/carton |
carton size |
Nm torque |
|
|
W1 |
W2、W4 |
|||||
|
30-40 |
20*1.0 |
M6*45 |
100 |
38*27*17 |
≥10 |
≥ 6 |
|
35-45 |
20*1.0 |
M6*45 |
100 |
38*27*17 |
≥ 10 |
≥ 6 |
|
40-50 |
20*1.0 |
M6*45 |
100 |
38*27*21 |
≥ 10 |
≥ 6 |
|
45-55 |
20*1.0 |
M6*45 |
100 |
38*27*24 |
≥ 10 |
≥ 6 |
|
50-60 |
20*1.0 |
M6*45 |
100 |
38*27*27 |
≥ 10 |
≥ 12 |
|
55-65 |
20*1.0 |
M6*45 |
100 |
38*27*29 |
≥ 10 |
≥ 12 |
|
60-70 |
20*1.0 |
M6*45 |
100 |
38*27*29 |
≥ 10 |
≥ 12 |
|
65-75 |
20*1.0 |
M6*45 |
100 |
38*27*29 |
≥ 10 |
≥ 12 |
|
70-80 |
20*1.0 |
M6*45 |
50 |
38*27*15 |
≥ 10 |
≥ 12 |
|
75-85 |
20*1.0 |
M6*45 |
50 |
38*27*15 |
≥ 10 |
≥ 12 |
|
80-90 |
20*1.0 |
M6*45 |
50 |
38*27*17 |
≥ 10 |
≥ 12 |
|
85-95 |
20*1.0 |
M6*45 |
50 |
38*27*17 |
≥ 10 |
≥ 12 |
|
60-70 |
24*1.0 |
M8*60 |
50 |
38*27*19 |
≥ 20 |
≥ 12 |
|
65-75 |
24*1.0 |
M8*60 |
50 |
38*27*21 |
≥ 20 |
≥ 12 |
|
70-80 |
24*1.0 |
M8*60 |
50 |
38*27*21 |
≥ 20 |
≥ 24 |
|
75-85 |
24*1.0 |
M8*60 |
50 |
38*27*22 |
≥ 20 |
≥ 24 |
|
80-90 |
24*1.0 |
M8*60 |
50 |
38*27*22 |
≥ 20 |
≥ 24 |
|
85-95 |
24*1.0 |
M8*60 |
50 |
38*27*24 |
≥ 20 |
≥ 24 |
|
90-100 |
24*1.0 |
M8*60 |
50 |
38*27*24 |
≥ 20 |
≥ 24 |
|
95-105 |
24*1.0 |
M8*60 |
50 |
38*27*27 |
≥ 20 |
≥ 24 |
|
100-110 |
24*1.0 |
M8*60 |
50 |
38*27*27 |
≥ 20 |
≥ 24 |
|
105-115 |
24*1.0 |
M8*60 |
50 |
38*27*29 |
≥ 20 |
≥ 24 |
|
110-120 |
24*1.0 |
M8*60 |
50 |
38*27*29 |
≥ 20 |
≥ 24 |
|
115-125 |
24*1.0 |
M8*60 |
50 |
38*27*31 |
≥ 20 |
≥ 39 |
|
120-130 |
24*1.0 |
M8*60 |
50 |
38*27*31 |
≥ 20 |
≥ 39 |
|
130-140 |
24*1.0 |
M8*60 |
50 |
38*27*34 |
≥ 20 |
≥ 39 |
|
140-150 |
24*1.0 |
M8*60 |
50 |
38*27*34 |
≥ 20 |
≥ 39 |
► Instruction：
W1一Galvanized steel.
W4—They are all Stainless Steel.
