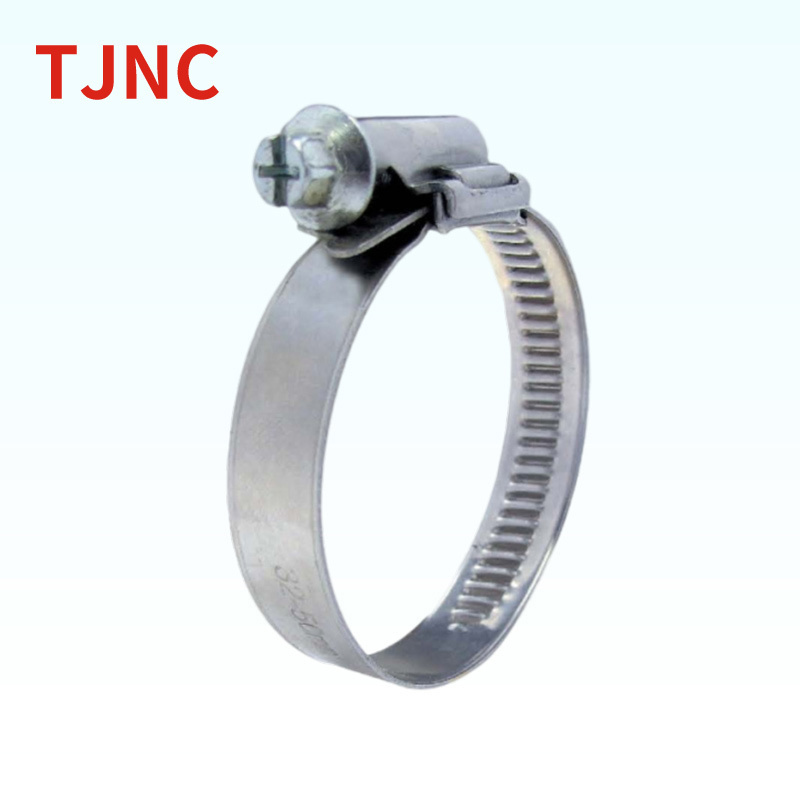

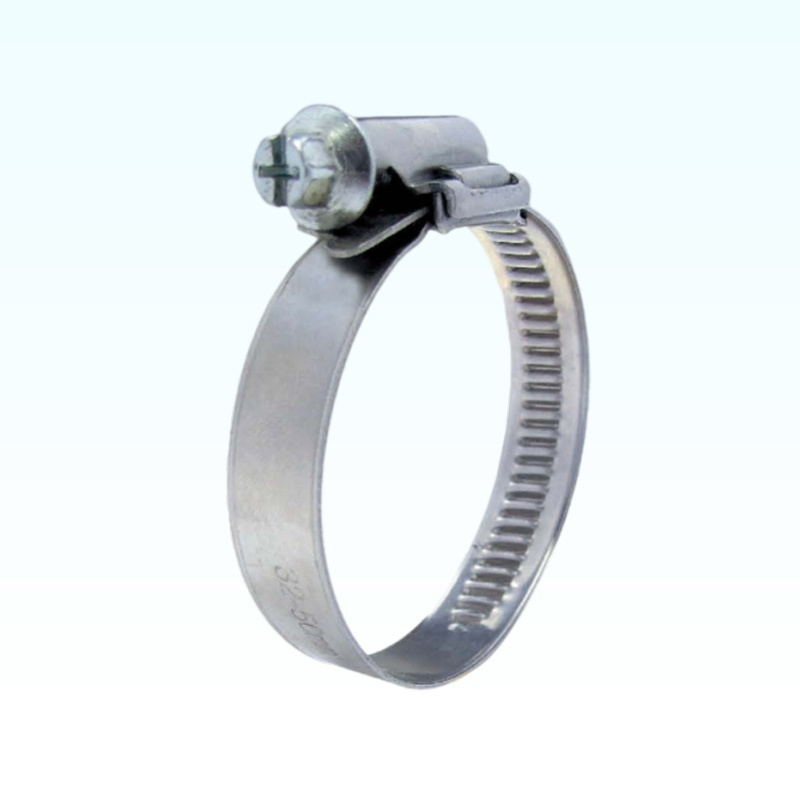

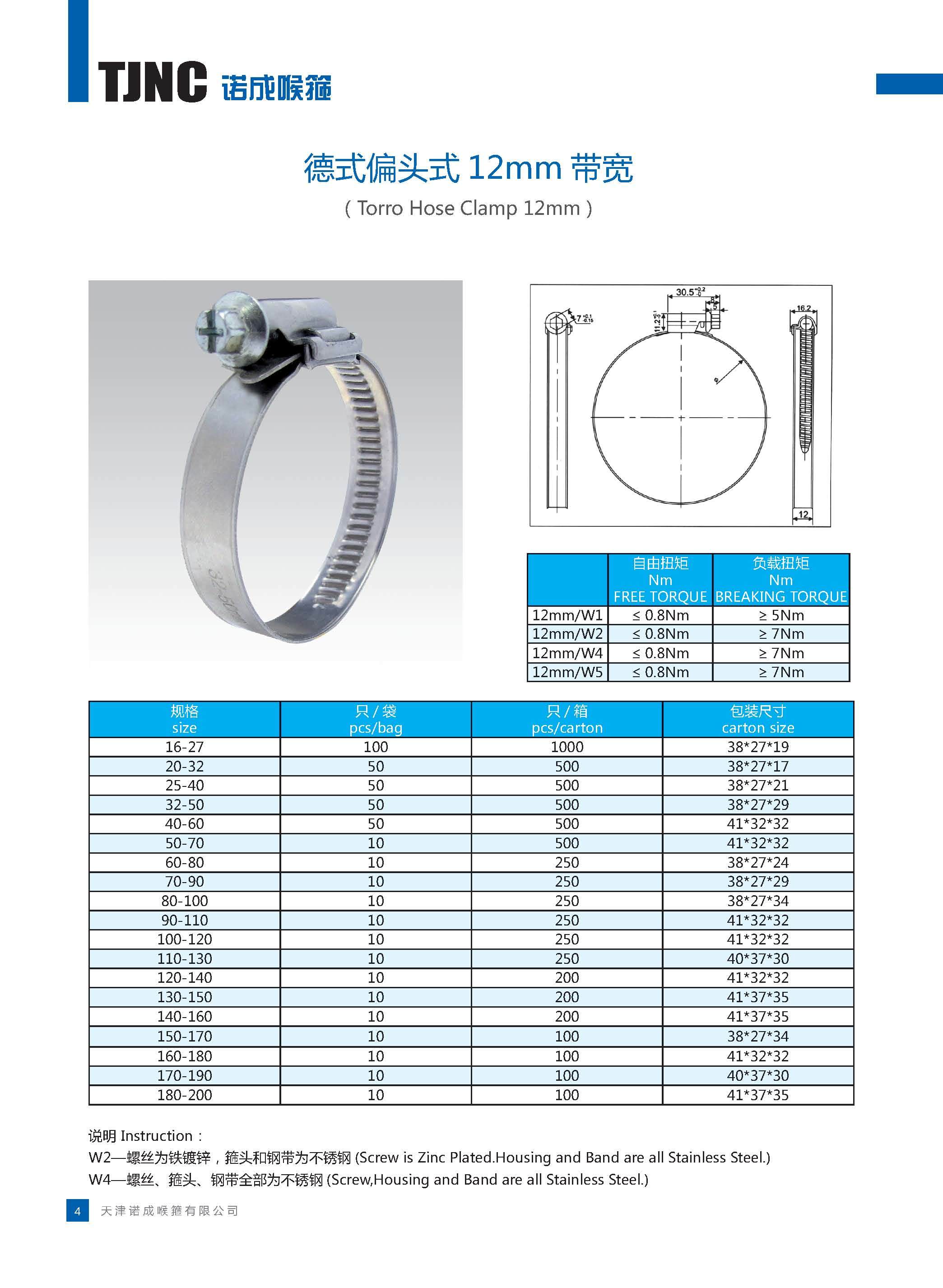

Torro Hose Clamp 12mm
W4一Screw,Housing and Band are all Stainless Steel.
Key words：
Classification：
Description
|
size |
pcs/bag |
pcs/carton |
carton size |
|
16-27 |
100 |
1000 |
38*27*19 |
|
20-32 |
50 |
500 |
38*27*17 |
|
25-40 |
50 |
500 |
38*27*21 |
|
32-50 |
50 |
500 |
38*27*29 |
|
40-60 |
50 |
500 |
41*32*32 |
|
50-70 |
10 |
500 |
41*32*32 |
|
60-80 |
10 |
250 |
38*27*24 |
|
70-90 |
10 |
250 |
38*27*29 |
|
80-100 |
10 |
250 |
38*27*34 |
|
90-110 |
10 |
250 |
41*32*32 |
|
100-120 |
10 |
250 |
41*32*32 |
|
110-130 |
10 |
250 |
40*37*30 |
|
120-140 |
10 |
200 |
41*32*32 |
|
130-150 |
10 |
200 |
41*37*35 |
|
140-160 |
10 |
200 |
41*37*35 |
|
150-170 |
10 |
100 |
38*27*34 |
|
160-180 |
10 |
100 |
41*32*32 |
|
170-190 |
10 |
100 |
40*37*30 |
|
180-200 |
10 |
100 |
41*37*35 |
|
|
Nm |
Nm |
|
12mm/W1 |
≤ 0.8Nm |
≥ 5Nm |
|
12mm/W2 |
≤ 0.8Nm |
≥ 7Nm |
|
12mm/W4 |
≤ 0.8Nm |
≥ 7Nm |
|
12mm/W5 |
≤ 0.8Nm |
≥ 7Nm |
► Instruction：
W2一Screw is Zinc Plated.Housing and Band are all Stainless Steel.
W4一Screw,Housing and Band are all Stainless Steel.
