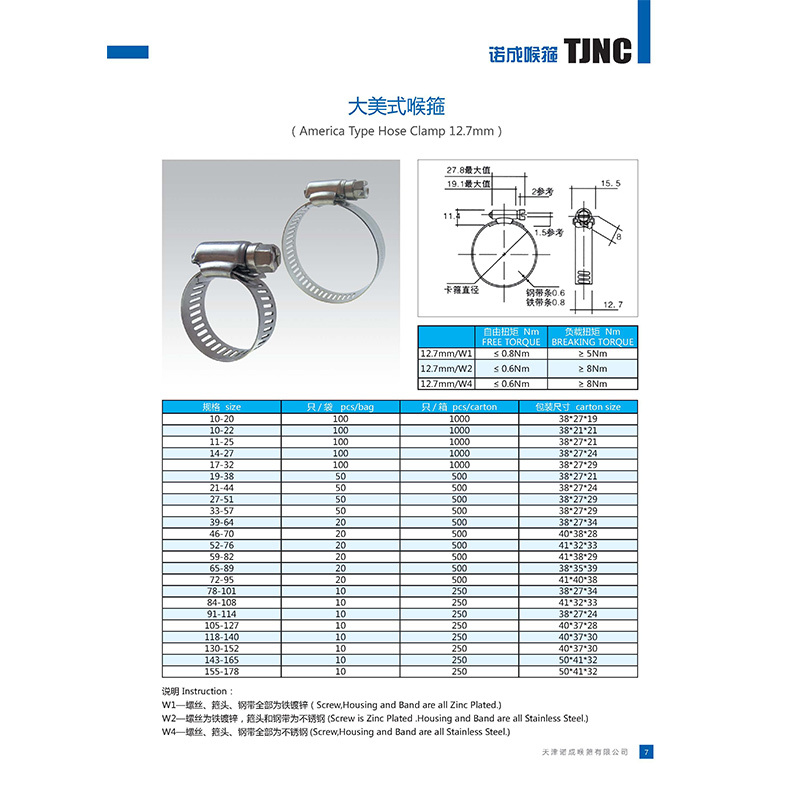

America Type Hose Clamp 12.7mm
W2一Screw is Zinc Plated .Housing and Band are all Stainless Steel.
W4一Screw,Housing and Band are all Stainless Steel.
Key words：
Classification：
Description
|
size |
pcs/bag |
pcs/carton |
carton size |
|
10-20 |
100 |
1000 |
38*27*19 |
|
10-22 |
100 |
1000 |
38*21*21 |
|
11-25 |
100 |
1000 |
38*27*21 |
|
14-27 |
100 |
1000 |
38*27*24 |
|
17-32 |
100 |
1000 |
38*27*29 |
|
19-38 |
50 |
500 |
38*27*21 |
|
21-44 |
50 |
500 |
38*27*24 |
|
27-51 |
50 |
500 |
38*27*29 |
|
33-57 |
50 |
500 |
38*27*29 |
|
39-64 |
20 |
500 |
38*27*34 |
|
46-70 |
20 |
500 |
40*38*28 |
|
52-76 |
20 |
500 |
41*32*33 |
|
59-82 |
20 |
500 |
41*38*29 |
|
65-89 |
20 |
500 |
38*35*39 |
|
72-95 |
20 |
500 |
41*40*38 |
|
78-101 |
10 |
250 |
38*27*34 |
|
84-108 |
10 |
250 |
41*32*33 |
|
91-114 |
10 |
250 |
38*27*24 |
|
105-127 |
10 |
250 |
40*37*28 |
|
118-140 |
10 |
250 |
40*37*30 |
|
130-152 |
10 |
250 |
40*37*30 |
|
143-165 |
10 |
250 |
50*41*32 |
|
155-178 |
10 |
250 |
50*41*32 |
|
|
Nm |
Nm |
|
12.7mm/W1 |
≤ 0.8Nm |
≥ 5Nm |
|
12.7mm/W2 |
≤ 0.6Nm |
≥ 8Nm |
|
12.7mm/W4 |
≤ 0.6Nm |
≥ 8Nm |
► Instruction：
W1—Screw,Housing and Band are all Zinc Plated.
W2一Screw is Zinc Plated .Housing and Band are all Stainless Steel.
W4一Screw,Housing and Band are all Stainless Steel.
