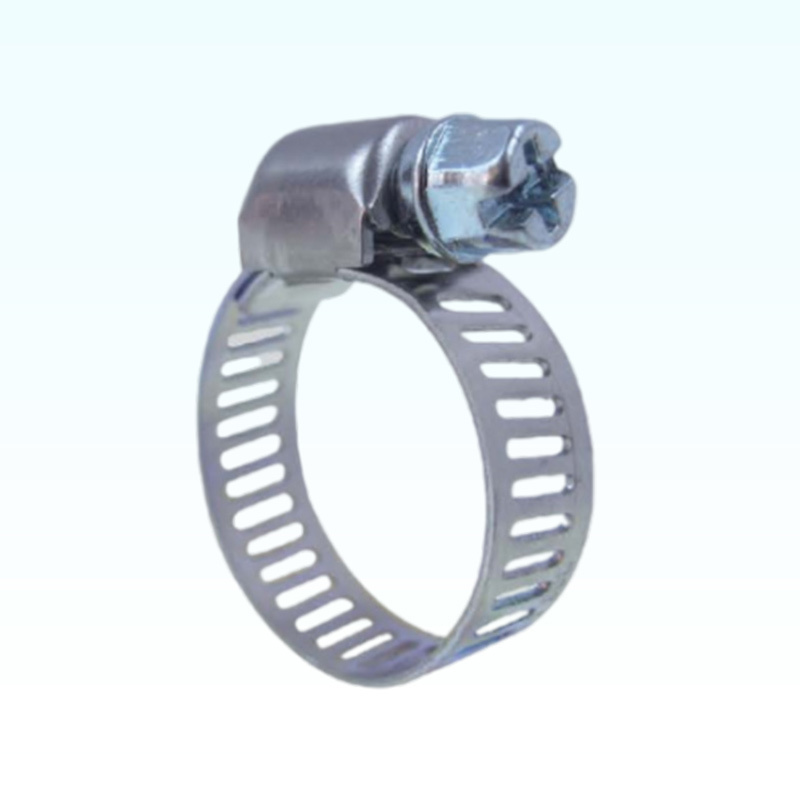

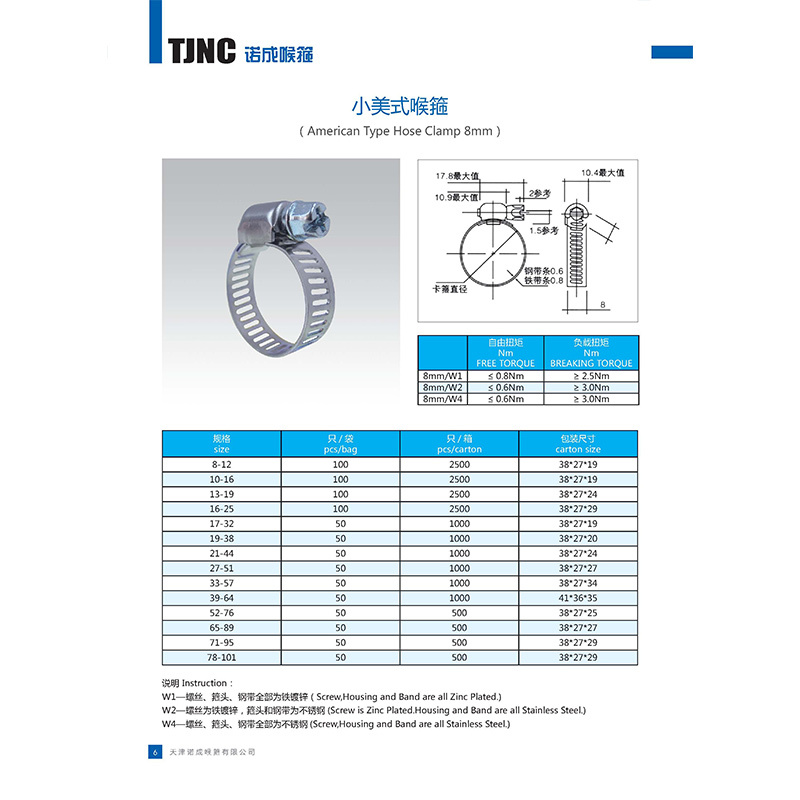

American Type Hose Clamp 8mm
W2一Screw is Zinc Plated.Housing and Band are all Stainless Steel.
W4—Screw,Housing and Band are all Stainless Steel.
Key words：
Classification：
Description
|
size |
pcs/bag |
pcs/carton |
carton size |
|
8-12 |
100 |
2500 |
38*27*19 |
|
10-16 |
100 |
2500 |
38*27*19 |
|
13-19 |
100 |
2500 |
38*27*24 |
|
16-25 |
100 |
2500 |
38*27*29 |
|
17-32 |
50 |
1000 |
38*27*19 |
|
19-38 |
50 |
1000 |
38*27*20 |
|
21-44 |
50 |
1000 |
38*27*24 |
|
27-51 |
50 |
1000 |
38*27*27 |
|
33-57 |
50 |
1000 |
38*27*34 |
|
39-64 |
50 |
1000 |
41*36*35 |
|
52-76 |
50 |
500 |
38*27*25 |
|
65-89 |
50 |
500 |
38*27*27 |
|
71-95 |
50 |
500 |
38*27*29 |
|
78-101 |
50 |
500 |
38*27*29 |
|
|
Nm |
Nm |
|
8mm/W1 |
≤ 0.8Nm |
≥ 2.5Nm |
|
8mm/W2 |
≤ 0.6Nm |
≥ 3.0Nm |
|
8mm/W4 |
≤ 0.6Nm |
≥ 3.0Nm |
► Instruction：
W1—Screw,Housing and Band are all Zinc Plated.
W2一Screw is Zinc Plated.Housing and Band are all Stainless Steel.
W4—Screw,Housing and Band are all Stainless Steel.
