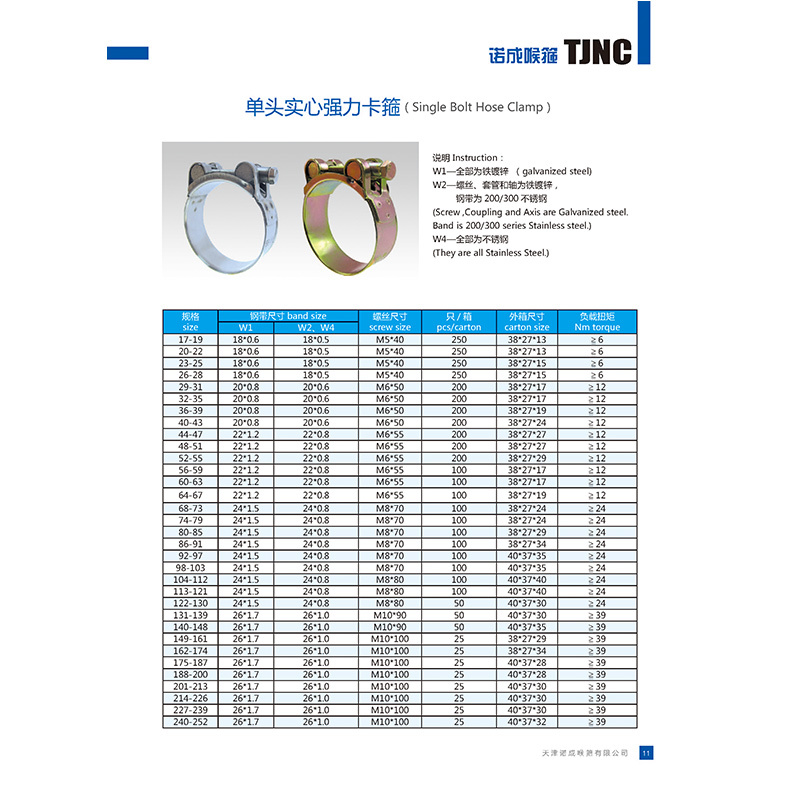

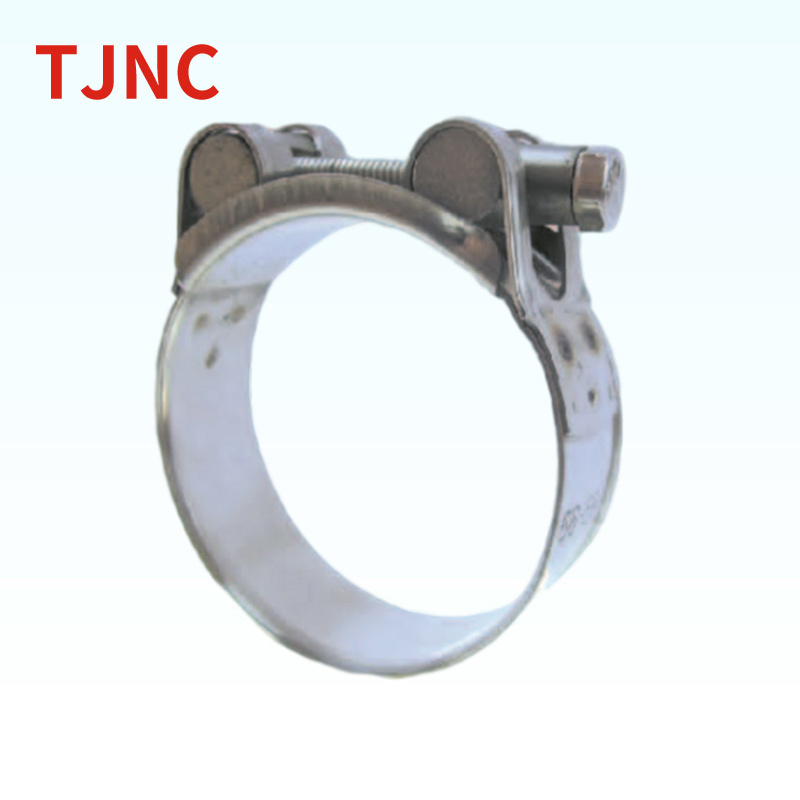

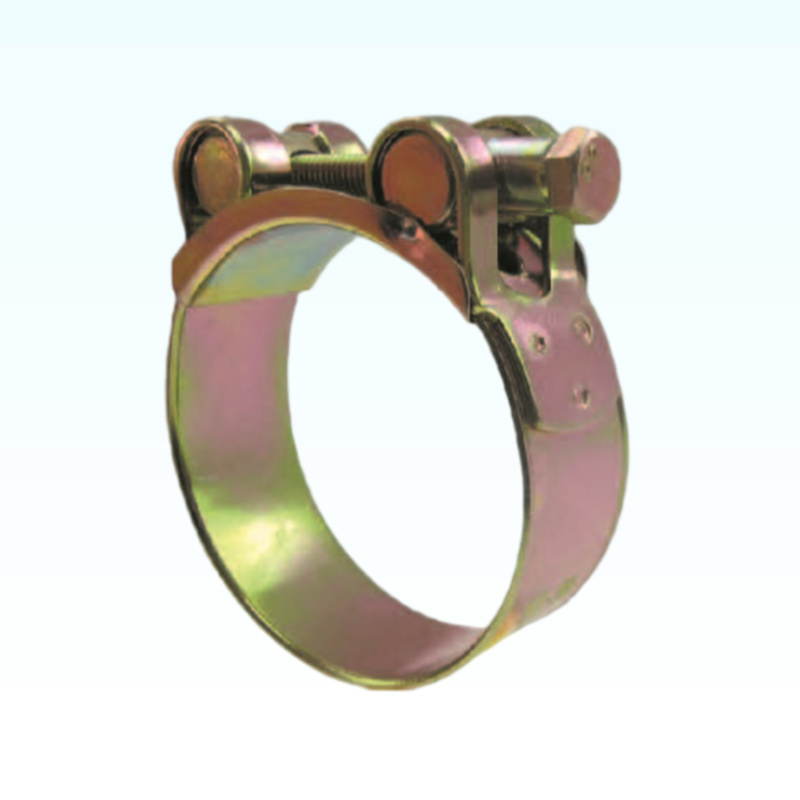

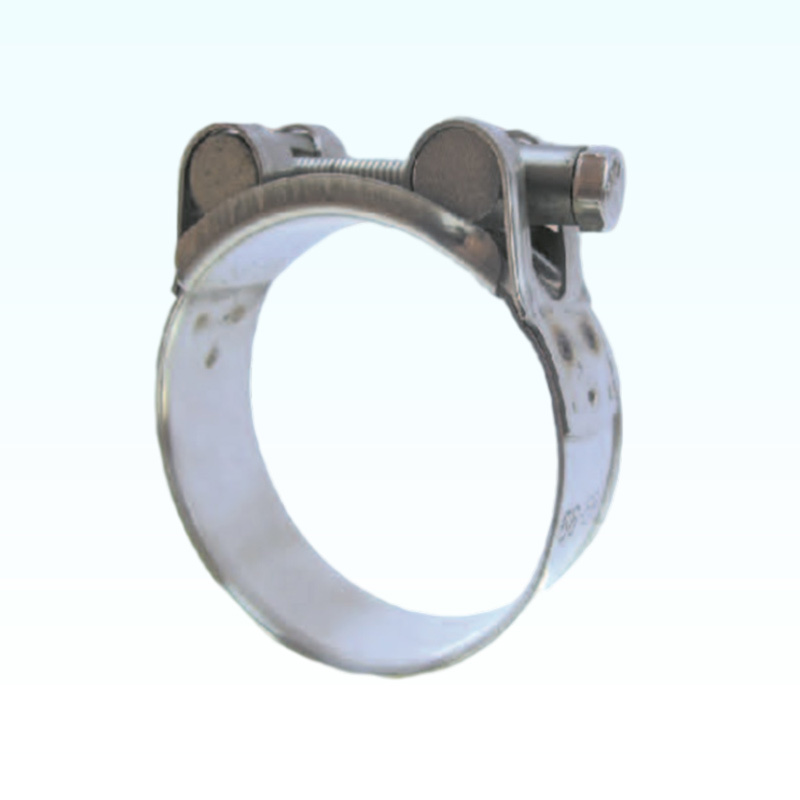

Single Bolt Hose Clamp
W2一Screw,Coupling and Axis are Galvanized steel.Band is 200/300 series Stainless steel.
W4—They are all Stainless Steel.
Key words：
Classification：
Description
|
size |
band size |
screw size |
pcs/carton |
carton size |
Nm torque |
|
|
W1 |
W2、W4 |
|||||
|
17-19 |
18*0.6 |
18*0.5 |
M5*40 |
250 |
38*27*13 |
≥ 6 |
|
20-22 |
18*0.6 |
18*0.5 |
M5*40 |
250 |
38*27*13 |
≥ 6 |
|
23-25 |
18*0.6 |
18*0.5 |
M5*40 |
250 |
38*27*15 |
≥ 6 |
|
26-28 |
18*0.6 |
18*0.5 |
M5*40 |
250 |
38*27*15 |
≥ 6 |
|
29-31 |
20*0.8 |
20*0.6 |
M6*50 |
200 |
38*27*17 |
≥ 12 |
|
32-35 |
20*0.8 |
20*0.6 |
M6*50 |
200 |
38*27*17 |
≥ 12 |
|
36-39 |
20*0.8 |
20*0.6 |
M6*50 |
200 |
38*27*19 |
≥ 12 |
|
40-43 |
20*0.8 |
20*0.6 |
M6*50 |
200 |
38*27*24 |
≥ 12 |
|
44-47 |
22*1.2 |
22*0.8 |
M6*55 |
200 |
38*27*27 |
≥ 12 |
|
48-51 |
22*1.2 |
22*0.8 |
M6*55 |
200 |
38*27*27 |
≥ 12 |
|
52-55 |
22*1.2 |
22*0.8 |
M6*55 |
200 |
38*27*29 |
≥ 12 |
|
56-59 |
22*1.2 |
22*0.8 |
M6*55 |
100 |
38*27*17 |
≥ 12 |
|
60-63 |
22*1.2 |
22*0.8 |
M6*55 |
100 |
38*27*17 |
≥ 12 |
|
64-67 |
22*1.2 |
22*0.8 |
M6*55 |
100 |
38*27*19 |
≥ 12 |
|
68-73 |
24*1.5 |
24*0.8 |
M8*70 |
100 |
38*27*24 |
≥ 24 |
|
74-79 |
24*1.5 |
24*0.8 |
M8*70 |
100 |
38*27*24 |
≥ 24 |
|
80-85 |
24*1.5 |
24*0.8 |
M8*70 |
100 |
38*27*29 |
≥ 24 |
|
86-91 |
24*1.5 |
24*0.8 |
M8*70 |
100 |
38*27*34 |
≥ 24 |
|
92-97 |
24*1.5 |
24*0.8 |
M8*70 |
100 |
40*37*35 |
≥ 24 |
|
98-103 |
24*1.5 |
24*0.8 |
M8*70 |
100 |
40*37*35 |
≥ 24 |
|
104-112 |
24*1.5 |
24*0.8 |
M8*80 |
100 |
40*37*40 |
≥ 24 |
|
113-121 |
24*1.5 |
24*0.8 |
M8*80 |
100 |
40*37*40 |
≥ 24 |
|
122-130 |
24*1.5 |
24*0.8 |
M8*80 |
50 |
40*37*30 |
≥ 24 |
|
131-139 |
26*1.7 |
26*1.0 |
M10*90 |
50 |
40*37*30 |
≥ 39 |
|
140-148 |
26*1.7 |
26*1.0 |
M10*90 |
50 |
40*37*35 |
≥ 39 |
|
149-161 |
26*1.7 |
26*1.0 |
M10*100 |
25 |
38*27*29 |
≥ 39 |
|
162-174 |
26*1.7 |
26*1.0 |
M10*100 |
25 |
38*27*34 |
≥ 39 |
|
175-187 |
26*1.7 |
26*1.0 |
M10*100 |
25 |
40*37*28 |
≥ 39 |
|
188-200 |
26*1.7 |
26*1.0 |
M10*100 |
25 |
40*37*28 |
≥ 39 |
|
201-213 |
26*1.7 |
26*1.0 |
M10*100 |
25 |
40*37*30 |
≥ 39 |
|
214-226 |
26*1.7 |
26*1.0 |
M10*100 |
25 |
40*37*30 |
≥ 39 |
|
227-239 |
26*1.7 |
26*1.0 |
M10*100 |
25 |
40*37*30 |
≥ 39 |
|
240-252 |
26*1.7 |
26*1.0 |
M10*100 |
25 |
40*37*32 |
≥ 39 |
► Instruction：
W1一Galvanized steel.
W2一Screw,Coupling and Axis are Galvanized steel.Band is 200/300 series Stainless steel.
W4—They are all Stainless Steel.
